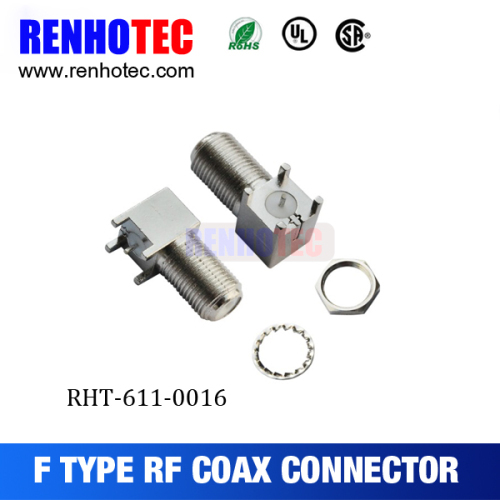

F Jack Bulkhead Connector For PCB Mount

Price: 0.25 USD
Payment Terms: T/T,WU,Paypal
Place of Origin: Guangdong, China (Mainland)
inquire
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: RH-611
Production Capacity: 500000
Delivery Date: about 2 weeks after order c...
impedance: 75 ohm
business type: OEM&ODM
ROHS Level: ROHS COMPLIANT
application: PCB
Product name: F Jack Bulkhead Connector F...
Means of Transport: Ocean,Land,Air
Packing: Carton package or as client...
Brand Name: Renhotec
body material: brass gold plated
lead time: 7-10 days
package type: PE tray
Brand name: Renhotec

Features
1. All materials are RoHS approved
2.Competitive price
3.OEM service offered
4.We are able to supply various types of connector

Product Description

F connectors series are economically priced connectors specially designed for use with NTSC TV ANTENNA and other similar applications.  F type joining devices use for 50 Ω cable assign system, especially CATV, broadcast television network.  It can also be used for having impedance to mate the occasion required and can be used in not mating the occasion too.  It is joined, inserts helping jointly that its characteristic is whorl, the price is suitable .

Technical Characteristics:

Temperature Range


-55~+155℃(PE Cable -40~+85)

Vibration


100m/S2 (10-500Hz), 10g

Impedance


50 Ω

Frequency Range


DC -4GHz

Working Voltage


500V r.m.s at sea level

Withstanding Voltage


1500V r.m.s at sea level

Contact Resistance

Center contact

≤1.5m Ω


Outer contact

≤1m Ω

Contact Pin


Brass-Au / Ag plated

Insulation resistance


≥5000M Ω

Center Conductor Retention Force


≥0.57N

Voltage Standing Wave Ratio

Straight

≤ 1.22/3GHZ


Right angle

≤ 1.30/3GZ

Durability(mating)


≤500cycles

Body


Brass--Ni plated

Contact


Beryllium copper

Insulator


PTFE





Packaging & Shipping

Packaging:

1) Packed in polybag/tray ,and cartons (bulk package )

2) Private packing and label service are available as per your requirement

Shipping

1.The parts from us are sure to have quality warranty, and they are double tested before shipping.

2.The items can be sent within 7-10 working days after we received the payments.

3.As for mass production, we will confirm the delivery in advance.We will send you're the products by UPS/DHL/TNT/ FedEx.

Our Services

1.We offer factory price and MOQ is 1000pcs

2.OEM order is warmly welcome, we have 10 years OEM professional experience.

3.Good quality: Our QC staffs inspect product one by one and the defect rate is under 3%, we can assure the best quality.

4.Fast delivery: 3-5 days for sample, 10-15 days for bulk order.

5.Warranty:12 months after-sale service.

6.We promise to give you feedback within 24 hours and find solution in the next 48 hours.

Warranty

We provide comprehensive after-sales service, including quality service, guidance services, We focus on customer needs in every detail. Please contact us if you need our detail warranty term.

Good feedback:

Company Information

   Dongguan Dosin Hardware Electronics Co., Ltd  was established in 2005, located in Dongguan city, Guangdong, China. We area leading microwave/RF component manufacturer and designing company, the products include RF coaxial connector, cable assembly, wireless antenna, adapter and WLAN accessory etc. They are widely used in GSM ,CDMA,3G communication system, satellite orientation, base stations , radar and military fields. If you have any needs, pls sent me an email or leave me a massage.

FAQ

Q: What is the Minimum Order Quantity(MOQ)?

A: Normally, MOQ is 1000pcs, but special requirements can be accepted.



Q: How much do I need to pay for your OEM service?

A: No need to pay extra cost for our OEM service if order quantity over 1000 pcs. The OEM cost includes in the unit price.



Q: What is the lead time?(How long do you need me to prepare my goods?)

A: 2-4 days for sample orders, 10-15 days for mass production orders (based on different quantities, OEM , etc.)



Q: How will you deliver goods to me?

A: We ship by air and sea generally. In the mean time, we cooperate with international expresses such as DHL, UPS, FedEx, TNT to enable our customers to get their goods rapidly.



Q: How long do I need to wait before my goods arrive?

A: 5-7 days for air transportation, 3-5 days for international express.



Q: How is your product quality?

A: Our raw materials are purchased from qualified suppliers. And we have a strong quality control team to guarantee our quality according to AQL standard. DOSIN always care what you care!



Q: What is your warranty?

A: Our warranty is 12 months after delivery, DOSIN pays high attention to after-sales service.
